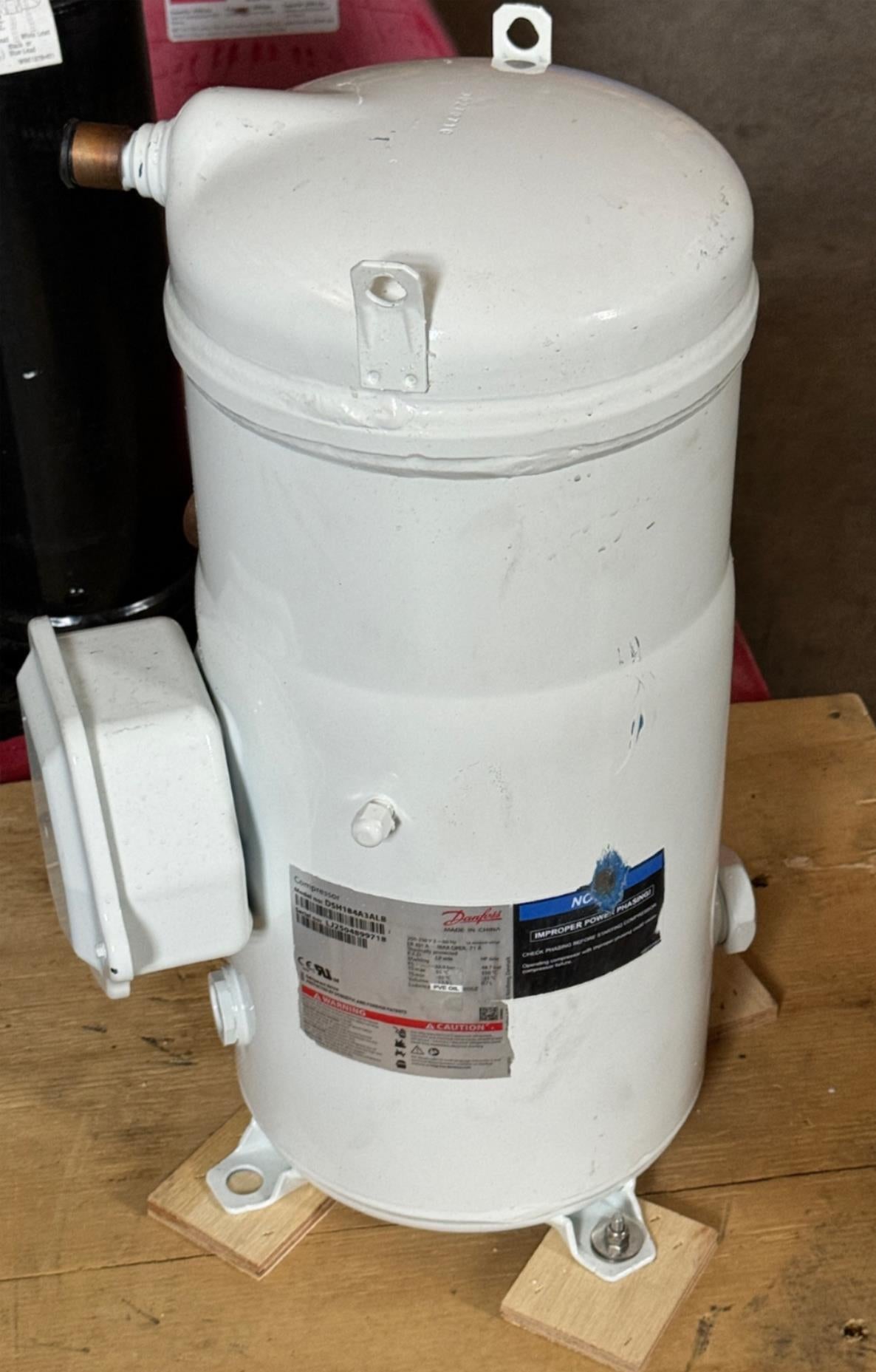

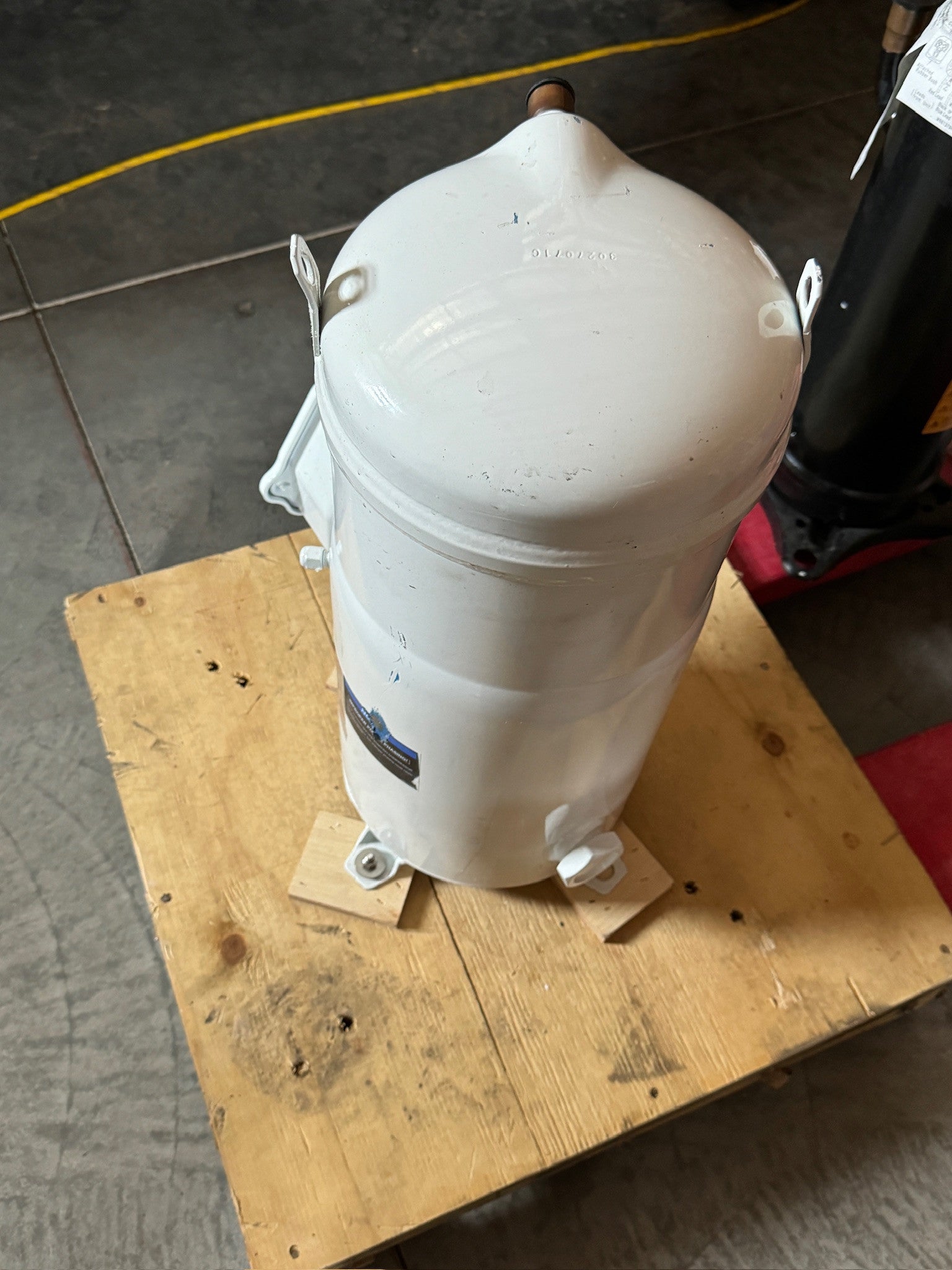

New Danfoss 184,000 BTU Scroll Compressor
208-230V
3Ph
MPN: DSH184A3ALB
Refrigerant: R410A
CONTACT FOR SHIPPING QUOTE AS SHIPPING FIGURE IS FREIGHT TO AN ADDRESS WITHIN 300 MILES OF US. BUSINESS ADDRESS WITH FORKLIFT. IF YOU DO NOT HAVE THAT PLEASE NOTE, WILL BE CHEAPER TO SEND TO CLOSEST FEDEX FREIGHT TERMINAL.
| EAN | 5702424067526 |
| Approval |
CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V] | 208-230/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | DSH184-3 (Old) |
| Diameter [mm] | 243 mm |
| Discharge connection height [mm] | 525 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 8560235 |
| Economizer | No |
| Family | DSH |
| Fitting standard | ODF |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Glass mounting | Threaded |
| Glass torque [Nm] | 50 N-m |
| High Side TS Max | 150 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.7 L |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP54 (with cable gland) |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 13.9 L |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 351 A |
| Max pressure (PS) - high side | 48.7 bar |
| Max pressure (PS) - low side | 33.3 bar |
| Maximum Operating Current [MOC] | 71 A |
| MCC | 75 A |
| Model number | DSH184A3ALC |
| Motor protection | Internal overload protector |
| Mounting torque [Nm] | 15 N-m |
| Network power supply [V/Ph/Hz] | 200-230/3/50 208-230/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 3.6 L |
| Oil equalization | 1-3/4'' Rotolock |
| Oil reference | 160SZ |
| Oil type | PVE Oil |
| Packing format | Industrial pack |
| Packing quantity | 8 |
| Phase | 3 |
| Power connections | Screw 4.8mm |
| Product group | Hermetic compressors |
| Product Name Description | DSH |
| Refrigerant charge [kg] [Max] | 10 kg |
| Refrigerants | R410A |
| Relief valve | none |
| RLA | 53.6 A |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Suction connection height [mm] | 300 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 1 3/8 in |
| Suction connection size [in] | 1 3/8 in |
| Swept volume [cm3] | 170.3 cm³ |
| Technology | Scroll |
| Test Dif [bar] [Max] | 37 bar |
| Test HP [bar] [Max] | 48.7 bar |
| Test LP [bar] [Max] | 33.3 bar |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 555 mm |
| Type | DSH184 |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.22 Ohm |
| Gross weight | 76.12 Kg |
| Net weight | 73.62 Kg |
